TKAC02 Distribution Panel
Products > Photovoltaic Products > Trackers
TKAC02 Distribution Panel
Accessory (optional) to simplify system wiring.
When a photovoltaic field has a comb panel arrangement with a backbone, it is advisable to install a distribution box at each branch which sorts the cables and contains both a set of switches to remove downstream power and a repetition device. /amplification of communication network signals.

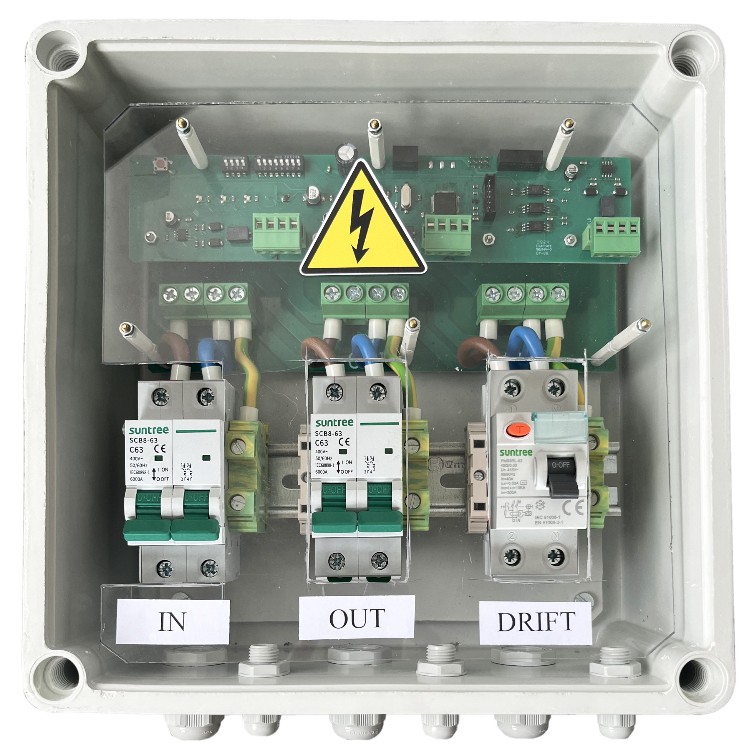

Each TKAC02 has the following sections :
IN = INPUT cables (Both RS_485 and 230 Vac) coming from the previous TKAC02
OUT = OUTPUT cables (Both RS_485 and 230 Vac) to the next TKAC02
DRIFT = DERIVATION cables (Both RS_485 and 230 Vac) towards a group of TRACKERS (and panels)
OUT = OUTPUT cables (Both RS_485 and 230 Vac) to the next TKAC02
DRIFT = DERIVATION cables (Both RS_485 and 230 Vac) towards a group of TRACKERS (and panels)
Documents
TKAC02
