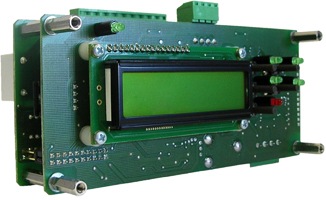

KS 433
The Kernel products series "PLC Board" are open frame PLC with operator panel integrated projected on customer features. In this way it is possible minimize the hardware device costs. These products are completely hardware custom but they are programmable with Kernel standard development tools "LogicPaint" and "Flash" in Ladder or Instruction List. In this way it is possible minimize the hardware cost without renounce at the flexibility to program the devices with standard language! All the PLC Board series products are available only for minimum order quantity to define.

MAIN FEATURES :
- Alphanumeric LCD Display 16x2
up to 5 function keys with LED, up to 6 system keys
6 digital inputs PNP 24 VDC
6 relays outputs 250v 6A
1 analogic input at 10 bit configurable for thermocouple, PT100, current or voltage
configurable serial port
